Recently, I was in the market for a new focusing screen for my Canon F-1. I had the microprism-only version (Screen A), and unfortunately as age comes on, I find that I much prefer the split-image rangefinder type. But I didn’t know exactly what to look for. Was it Screen B? C? Something else?
After some digging I was able to find the correct screen. When it arrived it had a nice little pamphlet showing all the available screens and what use they were best suited for.
So, for the sake of sharing information, I’m going to put that info here in case anyone else ever wants to know. Below the scan from the pamphlet you’ll find info on their use. I hope you’ll find this helpful.
Focusing Screen A (Microprism)
Matte/Fresnel field with microprism rangefinder spot in center of screen. Suitable for general photography with most lenses. Supplied as standard equipment with the F-1.
Focusing Screen B (Split-Image)
Matte/Fresnel field with split-image rangefinder spot in center of screen. Ideal for use with 15mm fish-eye, super wide-angle, and wide-angle lenses and for subjects having straight lines. Unsuitable for close-up and macro-photography and for use with lenses having small maximum apertures or requiring stopped-down metering, because one-half of rangefinder darkens.
Focusing Screen C (All Matte)
Matte/Fresnel field with clear matte center spot. For viewing and focusing without distraction in the center. Especially recommended for macro and telephoto photography.
Focusing Screen D (Matte/Section)
Similar to C screen, but has horizontal and vertical reference lines.
Recommended for architectural photography and copy work in which accurate image placement is essential. Especially useful with TS 35mm (Tilt and Shift) lens.

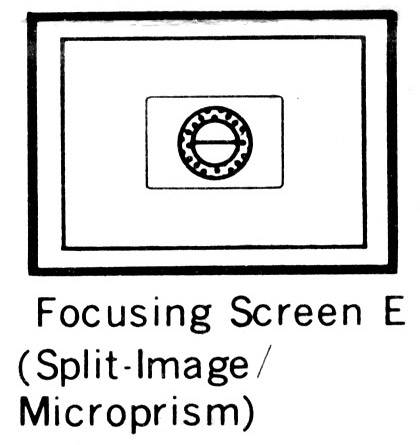

Focusing Screen E (Split-Image/Microprism)
Matte/Fresnel field with split-image rangefinder spot surrounded by
microprism collar. Precise focusing may be performed using any part of the screen. Suitable for general photography using any type of lens.
Focusing Screen F (Microprism/Large Aperture Lenses)
Similar to Focusing Screen A, but angle of microprisms contained within the rangefinder spot is designed to work especially well with lenses having maximum apertures of f/1.2 – f/2.8. Unsuitable for small aperture lenses because rangefinder darkens.

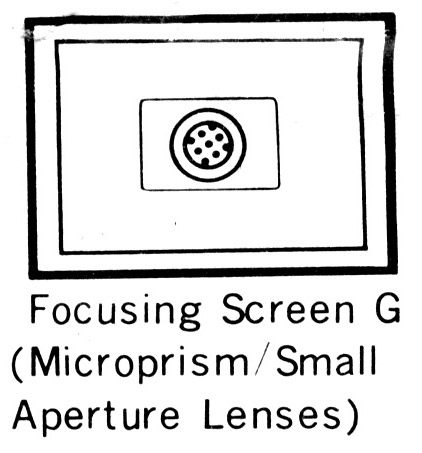

Focusing Screen G (Microprism/Small Aperture Lenses)
Similar to Focusing Screen A, but angle of of microprisms contained within the rangefinder spot is designed to work especially well with lenses having maximum apertures of f/3.5 – 5.6. Perfect for telephoto lenses. Unsuitable for large aperture lenses because of focusing inaccuracy.
Focusing Screen H (Matte/Scale)
Matte/Fresnel field with fine matte center plus horizontal and vertical scales in millimeters. Recommended for close-ups, macrophotography, copy work and architectural photography where it is useful to know the size of the subject or the magnification involved.

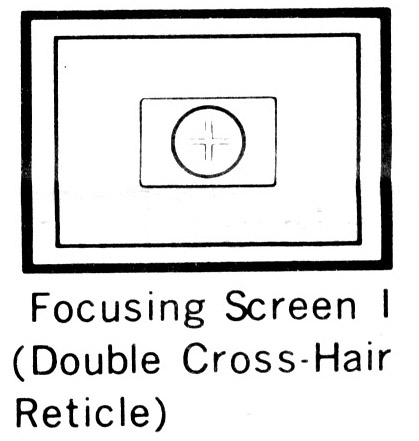

Focusing Screen I (Double Cross-Hair Reticule)
Matte/Fresnel field with 5mm clear center spot containing double cross-hair reticule. To focus, move your eye left to right. If cross-hairs stay in same position on subject, then subject is in focus. Recommended for photomicrography, astrophotography, or other applications requiring high magnifications.
